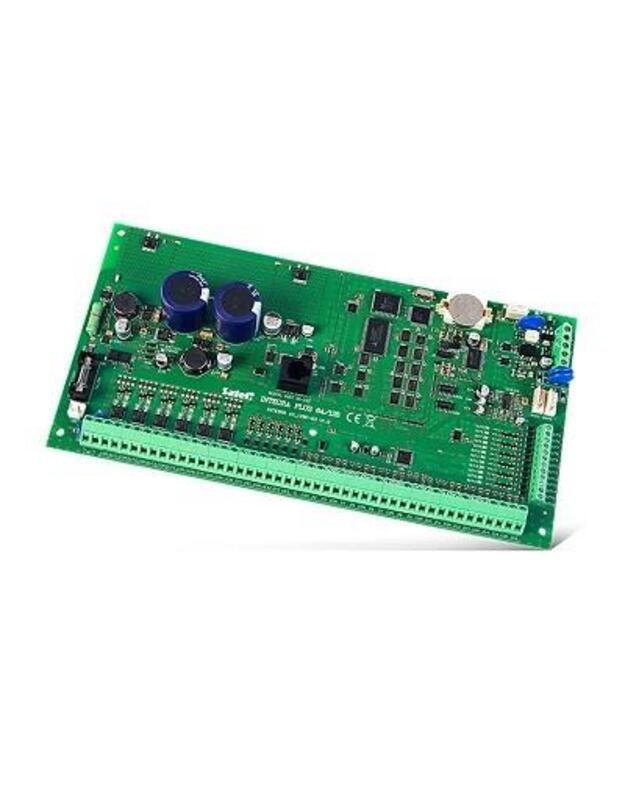

CONTROL PANEL GRADE 3/INTEGRA64 PLUS SATEL
CONTROL PANEL GRADE 3/INTEGRA64 PLUS SATEL
Max. number of outputs 64 | Max. number of zones 64
Garantija: |
36 |
Gamintojas: |
SATEL |
EN50131 Grade 3 compliant alarm control panel main board, with 16 up to 64 zones and outputs
- full compliance with EN50131 series of standards for Grade 3 equipment
- built-in advanced 2A+2A power supply with extended autodiagnostics
- up to 64zones with programmable EOL value and support for 3 EOL configuration (only mainboard zones)
- USB port for programming via PC
- up to 32 partitions, 8 tenants
- up to 64fully programmable outputs
- dedicated buses for communication with keypads and expansion modules
- system operation via LCD keypads, partition keypads, remote control keyfobs or proximity cards
- remote system operation with PC, smartphone or voice-guided telephone menu
- 64 independent timers for automatic control
- access control and home automation features
- non-volatile event log with 6143entries, with on-line printing support
- support for 192+8+1 user codes
- firmware upgrades via PC
Techninė specifikacija |
Dimensions |
264 x 134 mm |
Full Description Line |
Max. number of outputs 64|Max. number of zones 64 |
Max. number of zones |
64 |
Shipping Box Depth |
29.5 |
Shipping Box Height |
6 |
Shipping Box Weight |
0.646 |
Shipping Box Width |
15 |
Shipping box quantity |
1 |
Unit Brutto Volume |
0.002655 |
Unit Gross Weight |
0.646 |
Unit Net Weight |
0.32 |
Vendor Homepage |
http://www.satel.pl/en/produktid/806 |
iOS |
64 |
