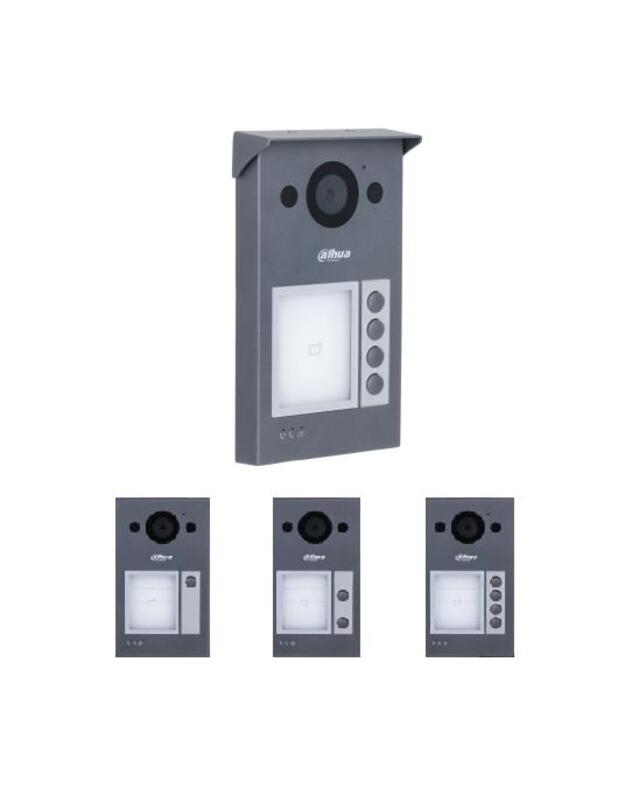

> Full metal casing design.
> Customizable Number of Buttons (1, 2 or 4 button sets included).
> 1/2.8" 2-MP HD CMOS camera.
> Offers two–way video call with indoor monitors.
> IR illumination and auto WDR.
> Supports two locks.
> Voice call and unlocking through app.
> Two wires and RJ-45 connection.
> IK08 and IP65 rated.
> H.264 and H.265.
> Unlock with IC card.
> PoE power supply.
> Included rain cover.
> Optional red-brown or dark blue front cover.
| Techninė specifikacija |
| Alarm In |
1 |
| Alarm Out |
1 |
| Audio-In |
1 |
| Audio-Out |
1 |
| Dimensions |
188.1 mm × 107.2 mm × 30 mm |
| Full Description Line |
1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xRS-485|1xAlarm In|1xAlarm Out|48 VDC, 1 A|Operating temperature range –40 °C to +60 °C |
| MicroSD Card Slot |
1 |
| Operating temperature range |
–40 °C to +60 °C |
| Power supply requirements |
48 VDC, 1 A |
| RJ45 |
1 |
| RS-485 |
1 |
| Shipping Box Depth |
25 |
| Shipping Box Height |
8.3 |
| Shipping Box Weight |
0.82 |
| Shipping Box Width |
16.7 |
| Shipping box quantity |
1 |
| Unit Brutto Volume |
0.002289 |
| Unit Gross Weight |
0.78 |
| Unit Net Weight |
0.57 |
| Vendor Homepage |
www.dahuasecurity.com/products/All-Products/Video-Intercoms/2-Wire-Series/Villa-Door-Station/Pro-Series/VTO3312Q-P |
