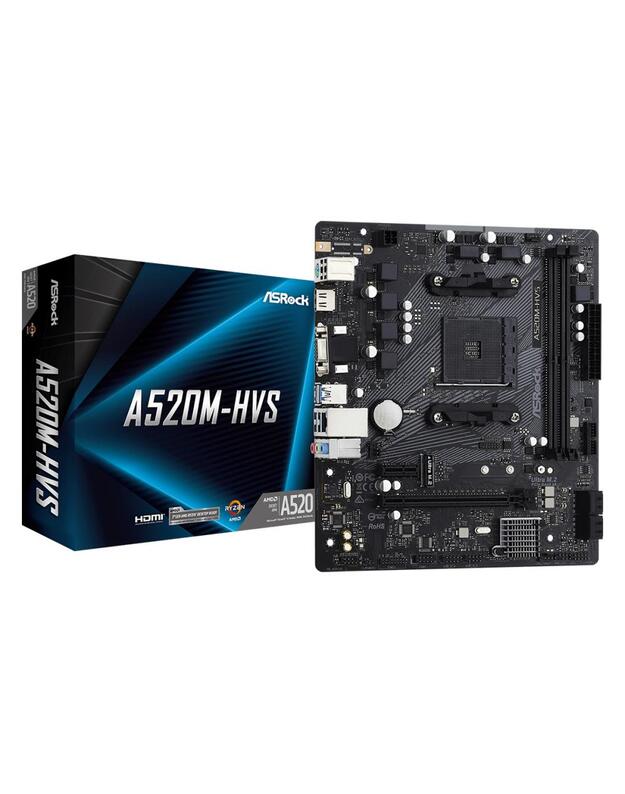

Mainboard|ASROCK|AMD A520|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|Memory DDR4|Memory slots 2|1x15pin D-sub|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|A520M-HVS

Į palyginimą Į norų sąrašą

Prekės kodas: 1309552

Turimas kiekis: Išparduota

Pranešti, kai bus prekyboje

Garantija:	36
Gamintojas:	ASROCK

Aprašymas
Specifikacija

A520M-HVS

Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
6 Phase Power Design
Supports DDR4 4733+ (OC)
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: D-Sub, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
6 x USB 2.0(2 x Rear, 4 x Front)
Realtek Gigabit LAN

Techninė specifikacija
15pin D-sub	1
Audio-In	2
Audio-Out	1
Chipset	AMD A520
Form Factor	MicroATX
Frequency speed	4466
Full Description Line	AMD A520\|SAM4\|MicroATX\|1xPCI-Express 3.0 1x\|1xPCI-Express 3.0 16x\|1xM.2\|DDR4\|4733/4666/4600/4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2666/2400/2133 MHz\|Memory slots 2\|1x15pin D-sub\|1xHDMI\|2xAudio-In\|1xAudio-Out\|2xUSB 2.0\|4xUSB 3.2\|1xPS/2\|1xRJ45\|SATA\|Video Depending on CPU\|Audio Realtek ALC887\|LAN Realtek (Gigabit)\|RAID SATA 0, 1, 10\|TPM Header
HDMI	1
Integrated LAN	Realtek (Gigabit)
Integrated audio	Realtek ALC887
Integrated video	Depending on CPU
Memory slots	2
Memory type	DDR4
PCI-Express 3.0 1x	1
PS/2	1
RAID	SATA 0, 1, 10
RJ45	1
SATA	Yes
Shipping Box Depth	61
Shipping Box Height	51
Shipping Box Weight	17
Shipping Box Width	29
Shipping box quantity	20
Socket	SAM4
TPM	Header
USB 2.0	2
USB 3.2	4
Unit Brutto Volume	0.004511
Unit Gross Weight	0.85
Unit Net Weight	0.6
Vendor Homepage	www.asrock.com/mb/AMD/A520M-HVS/
iOS	1
