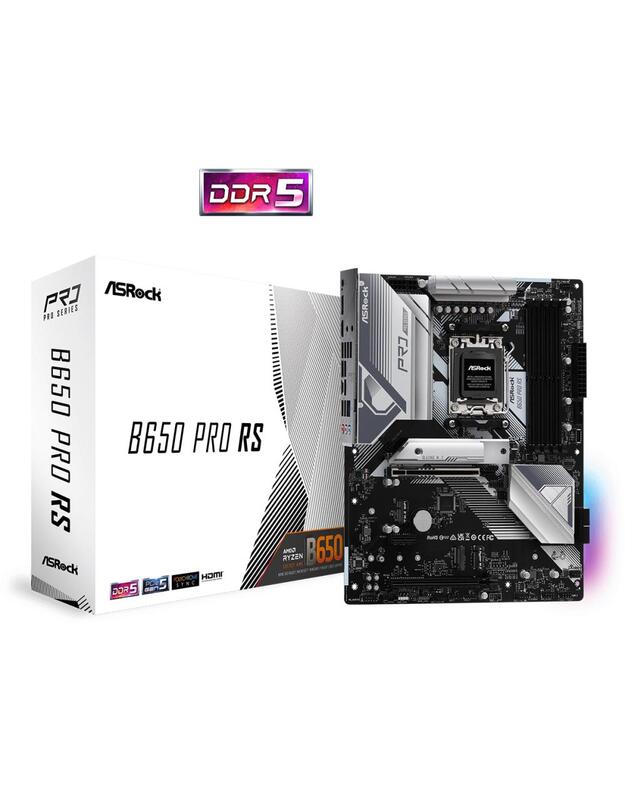

- Supports AMD Ryzen™ 7000 Series Processors
- 14+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6200+(OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16,
1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4),
1 M.2 (PCIe Gen3x2 & SATA3),
4 SATA3
-1 USB 3.2 Gen2x2 Type-C (Front),
2 USB 3.2 Gen2 Type A+C (Rear),
4 USB 3.2 Gen1 (2 Rear, 2 Front),
9 USB 2.0 (6 Rear, 3 Front)
-Realtek 2.5G LAN
Techninė specifikacija |
Audio port |
3 |
Chipset |
AMD B650 |
DisplayPort |
1 |
Form Factor |
ATX |
Frequency speed |
6200 |
Full Description Line |
AMD B650|SAM5|ATX|DDR5|6200 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|6xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1; NVMe 0, 1, 10|TPM Header |
HDMI |
1 |
Integrated LAN |
2.5 Gigabit |
Integrated audio |
Realtek ALC897 |
Integrated video |
Depending on CPU |
Memory slots |
4 |
Memory type |
DDR5 |
PCI-Express 4.0 16x |
1 |
RAID |
SATA 0, 1; NVMe 0, 1, 10 |
RJ45 |
1 |
SATA |
Yes |
Shipping Box Depth |
38.5 |
Shipping Box Height |
9.7 |
Shipping Box Weight |
2.09 |
Shipping Box Width |
32.5 |
Shipping box quantity |
1 |
Socket |
SAM5 |
TPM |
Header |
USB 2.0 |
Yes |
USB 3.2 |
Yes |
USB-C |
1 |
Unit Brutto Volume |
0.01214 |
Unit Gross Weight |
2.09 |
Unit Net Weight |
2 |
Vendor Homepage |
www.asrock.com/mb/AMD/B650%20Pro%20RS/index.asp |
iOS |
1 |
