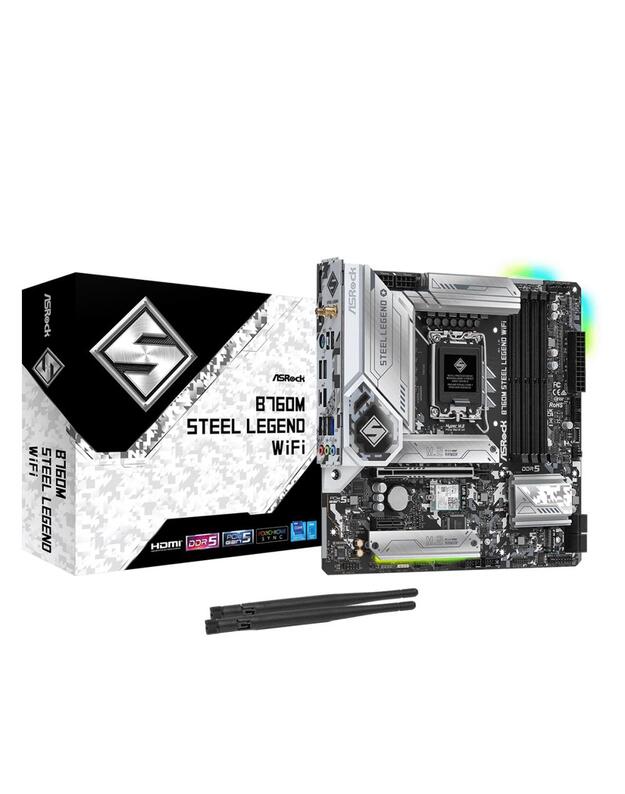

Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B760MSTEELLEGENDWIFI

Prekės kodas: 1409820

Turimas kiekis: Išparduota

Intel B760 Express | LGA1700 | Micro-ATX | DDR5 | 7200 MHz | Memory slots 4 | 1xPCI-Express 4.0 1x | 1xPCI-Express 5.0 16x | 4xM.2 | 1xHDMI | 1xDisplayPort | 2xUSB 2.0 | 5xUSB 3.2 | 1xUSB-C | 1xPS/2 | 1xRJ45 | 3xAudio port | USB 2.0 | USB 3.2 | Bluetooth | WiFi | SATA 3.0 | Video Depending on CPU | LAN 2.5 Gigabit | Audio Realtek ALC897 | RAID SATA 0, 1, 5, 10 | TPM Header
Garantija: 36
Gamintojas: ASROCK
B760M Steel Legend WiFi - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 12+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR5 7200MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
- Graphics Output Options: HDMI, DisplayPort, eDP
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
- 1 USB 3.2 Gen2 Type-A (Rear),
- 6 USB 3.2 Gen1 (4 Rear, 2 Front),
- 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
- Supports ASRock Auto Driver Installer
Techninė specifikacija
Audio port 3
Bluetooth Yes
Chipset Intel B760 Express
DisplayPort 1
Form Factor Micro-ATX
Frequency speed 7200
Full Description Line Intel B760 Express|LGA1700|Micro-ATX|DDR5|7200 MHz|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|USB 2.0|USB 3.2|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
HDMI 1
Integrated LAN 2.5 Gigabit
Integrated audio Realtek ALC897
Integrated video Depending on CPU
Memory slots 4
Memory type DDR5
PCI-Express 4.0 1x 1
PS/2 1
RAID SATA 0, 1, 5, 10
RJ45 1
SATA 3.0 Yes
Shipping Box Depth 57.3
Shipping Box Height 28.7
Shipping Box Weight 15.08
Shipping Box Width 32
Shipping box quantity 10
Socket LGA1700
TPM Header
USB 2.0 Yes
USB 3.2 Yes
USB-C 1
Unit Brutto Volume 0.005457
Unit Gross Weight 1.21
Unit Net Weight 1
Vendor Homepage www.asrock.com/mb/Intel/B760M%20Steel%20Legend%20WiFi/index.asp
WiFi Yes
iOS 4
