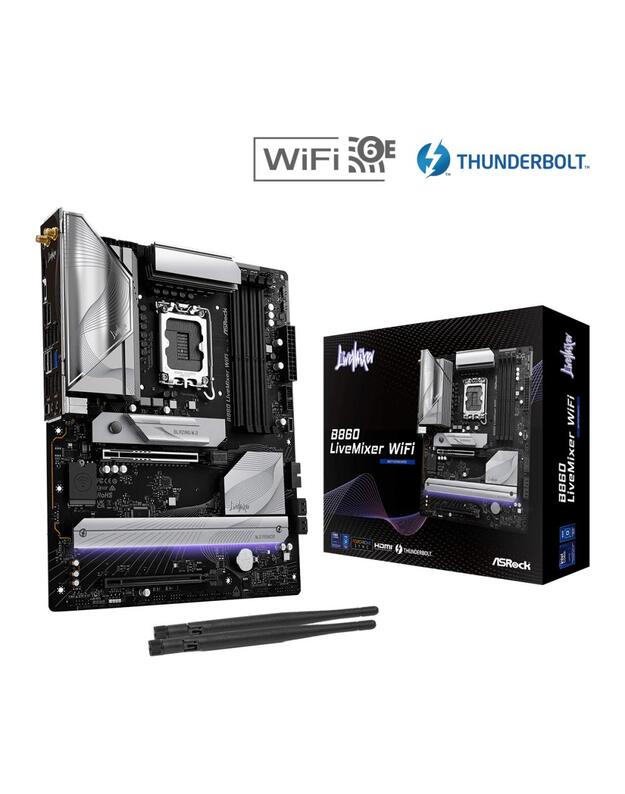

Mainboard|ASROCK|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xAudio-Out|1xMicrophone|6xUSB 2.0|6xUSB 3.2|1xUSB-C w/Thunderbolt|1xOptical S/PDIF|1xRJ45|B860LIVEMIXERWIFI

    Product code: 1433285

    Available quantity 4

    Intel B860 Express | LGA1851 | ATX | DDR5 | 8666 MHz | Memory slots 4 | 1xPCI-Express 4.0 16x | 1xPCI-Express 5.0 16x | 1xM.2 | 1xHDMI | 1xAudio-Out | 1xMicrophone | 6xUSB 2.0 | 6xUSB 3.2 | 1xUSB-C w/Thunderbolt | 1xOptical S/PDIF | 1xRJ45 | SATA | USB-C | USB 2.0 | USB 3.2 | Thunderbolt | Bluetooth | WiFi | SATA 3.0 | Video Depending on CPU | LAN 2.5 Gigabit | Audio Realtek ALC1220 | RAID SATA 0, 1, 5, 10 | TPM Header
    €24358 inc VAT
    Have any questions about this item? Ask
    Warranty: 36
    Manufacturer: ASROCK
    LiveMixer series is crafted with the needs of modern content creators in mind, offering excellent connectivity for streaming and multiple auxiliary devices. Its reliable performance ensures seamless content creation and efficient time management
    Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
    12+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
    4 x DDR5 DIMMs
    Supports Dual Channel, up to 8666+ (OC)
    1 PCIe 5.0 x16, 1 PCIe 4.0 x16
    Graphics Output Options: 1 HDMI, 1 Thunderbolt™ 4 Type-C
    Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
    4 SATA3
    1 Blazing M.2 (PCIe Gen5x4)
    2 Hyper M.2 (PCIe Gen4x4)
    1 Thunderbolt™ 4 Type-C (Rear)
    1 USB 3.2 Gen1 Type-C (Front)
    10 USB 3.2 Gen1 (6 Rear, 4 Front)
    10 USB 2.0 (6 Rear, 4 Front)
    Realtek 2.5G LAN
    802.11axe Wi-Fi 6E + Bluetooth
    Supports BIOS Flashback,
    20K Caps with 1000uF Capacitance
    Technical specification
    Audio-Out 1
    Bluetooth Yes
    Chipset Intel B860 Express
    Form Factor ATX
    Frequency speed 8666
    Full Description Line Intel B860 Express|LGA1851|ATX|DDR5|8666 MHz|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xAudio-Out|1xMicrophone|6xUSB 2.0|6xUSB 3.2|1xUSB-C w/Thunderbolt|1xOptical S/PDIF|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|Thunderbolt|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC1220|RAID SATA 0, 1, 5, 10|TPM Header
    HDMI 1
    Integrated LAN 2.5 Gigabit
    Integrated audio Realtek ALC1220
    Integrated video Depending on CPU
    Memory slots 4
    Memory type DDR5
    Microphone 1
    Optical S/PDIF 1
    PCI-Express 4.0 16x 1
    RAID SATA 0, 1, 5, 10
    RJ45 1
    SATA Yes
    SATA 3.0 Yes
    Shipping Box Depth 40
    Shipping Box Height 30.5
    Shipping Box Weight 10.92
    Shipping Box Width 36
    Shipping box quantity 1
    Socket LGA1851
    TPM Header
    Thunderbolt Yes
    USB 2.0 Yes
    USB 3.2 Yes
    USB-C Yes
    USB-C w/Thunderbolt 1
    Unit Brutto Volume 0.009524
    Unit Gross Weight 1.83
    Unit Net Weight 1.4
    Vendor Homepage www.asrock.com/MB/Intel/B860%20LiveMixer%20WiFi/index.asp
    WiFi Yes
    iOS 1
