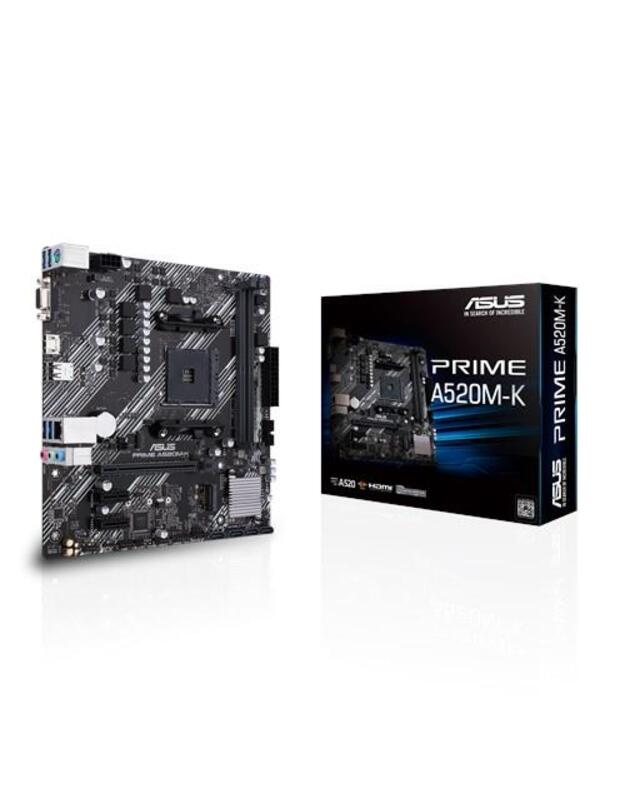

Mainboard|ASUS|AMD A520|SAM4|MicroATX|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|Memory DDR4|Memory slots 2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2 type B|1xPS/2|3xStereo jack 3.5mm|1xRJ45|PRIMEA520M-K

Į palyginimą Į norų sąrašą

Prekės kodas: 1308528

Turimas kiekis: Išparduota

button_notify_available

Garantija:	36
Gamintojas:	ASUS

Aprašymas
Specifikacija

PRIME A520M-K

AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A
AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
Comprehensive cooling: PCH heatsink and Fan Xpert
Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
5X Protection III: Multiple hardware safeguards for all-around system protection

Techninė specifikacija
15pin D-sub	1
Battery	Lithium CMOS battery
Battery weight	2
Chipset	AMD A520
Form Factor	MicroATX
Frequency speed	4600
Full Description Line	AMD A520\|SAM4\|MicroATX\|2xPCI-Express 3.0 1x\|1xPCI-Express 3.0 16x\|1xM.2\|DDR4\|4600/4400/4000/3866/3733/3600/3466/3333/3200/3000/2800/2666/2400/2133 MHz\|Memory slots 2\|1x15pin D-sub\|1xHDMI\|2xUSB 2.0\|4xUSB 3.2 type B\|1xPS/2\|3xStereo jack 3.5mm\|1xRJ45\|SATA\|USB 2.0\|USB 3.2\|Video Depending on CPU\|Audio Realtek ALC887\|RAID SATA 0, 1, 10
HDMI	1
Integrated audio	Realtek ALC887
Integrated video	Depending on CPU
Memory slots	2
Memory type	DDR4
PCI-Express 3.0 1x	2
PS/2	1
RAID	SATA 0, 1, 10
RJ45	1
SATA	Yes
Shipping Box Depth	56
Shipping Box Height	28.5
Shipping Box Weight	9.15
Shipping Box Width	28
Shipping box quantity	10
Socket	SAM4
Stereo jack 3.5mm	3
USB 2.0	Yes
USB 3.2	Yes
Unit Brutto Volume	0.004469
Unit Gross Weight	0.915
Unit Net Weight	0.75
Vendor Homepage	www.asus.com/Motherboards/PRIME-A520M-K/
iOS	1
