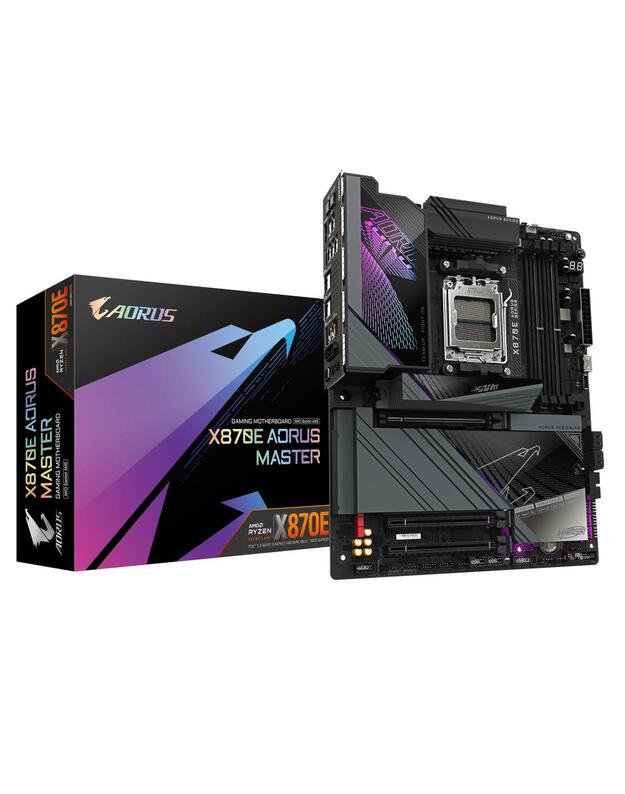

X870E AORUS MASTER
Key Features
- DDR5 OC up to 8600MT/s
- AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support
- DDR Wind Blade: Enhanced Active Cooling for Memory Modules
- M.2 EZ-Match: Magnetic alignment for easy installation of large heatsinks
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click:M.2 heatsinks with screwless design
- Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage:4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal:VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
- Fast Networking:5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI
- Reliable Audio:Realtek ALC1220 HD Audio & WIMA Audiophile Grade Capacitors
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
| Techninė specifikacija |
| Audio port |
2 |
| Bluetooth |
Yes |
| Chipset |
AMD X870E |
| Form Factor |
ATX |
| Frequency speed |
4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200/8400/8600 |
| Full Description Line |
AMD X870E|SAM5|ATX|DDR5|8600/8400/8200/8000/7800/7600/7200/7000/6800/6666/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|2xUSB 2.0|8xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC1220|LAN 5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10|TPM Header |
| HDMI |
1 |
| Integrated LAN |
5 Gigabit |
| Integrated audio |
Realtek ALC1220 |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR5 |
| Optical S/PDIF |
1 |
| PCI-Express 3.0 4x |
1 |
| RAID |
SATA 0, 1, 10; NVMe 0, 1, 5, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
36 |
| Shipping Box Height |
40.5 |
| Shipping Box Weight |
12 |
| Shipping Box Width |
33 |
| Shipping box quantity |
4 |
| Socket |
SAM5 |
| TPM |
Header |
| USB 2.0 |
Yes |
| USB 3.2 |
Yes |
| USB-C |
Yes |
| Unit Brutto Volume |
0.01203 |
| Unit Gross Weight |
3 |
| Unit Net Weight |
2.3 |
| Vendor Homepage |
www.gigabyte.com/Motherboard/X870E-AORUS-MASTER#kf |
| WiFi |
Yes |
| iOS |
4 |
