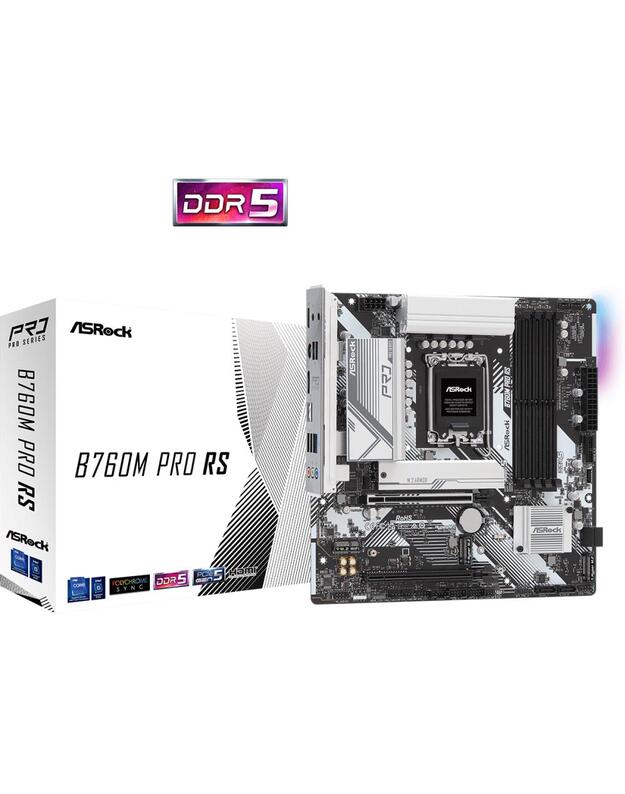

B760M Pro RS
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR5 7200MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
| Techninė specifikacija |
| Audio port |
3 |
| Chipset |
Intel B760 Express |
| DisplayPort |
1 |
| Form Factor |
Micro-ATX |
| Full Description Line |
Intel B760 Express|LGA1700|Micro-ATX|DDR5|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header |
| HDMI |
1 |
| Included Accessories |
- 1 x User Manual- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket |
| Integrated LAN |
2.5 Gigabit |
| Integrated audio |
Realtek ALC897 |
| Integrated video |
Depending on CPU |
| Memory slots |
4 |
| Memory type |
DDR5 |
| PS/2 |
1 |
| RAID |
SATA 0, 1, 5, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
28 |
| Shipping Box Height |
6.5 |
| Shipping Box Weight |
1.22 |
| Shipping Box Width |
26.5 |
| Shipping box quantity |
1 |
| Socket |
LGA1700 |
| TPM |
Header |
| USB 2.0 |
Yes |
| USB 3.2 |
Yes |
| USB-C |
1 |
| Unit Brutto Volume |
0.004823 |
| Unit Gross Weight |
1.22 |
| Unit Net Weight |
1.2 |
| Vendor Homepage |
www.asrock.com/mb/Intel/B760M%20Pro%20RS/ |
| iOS |
1 |
