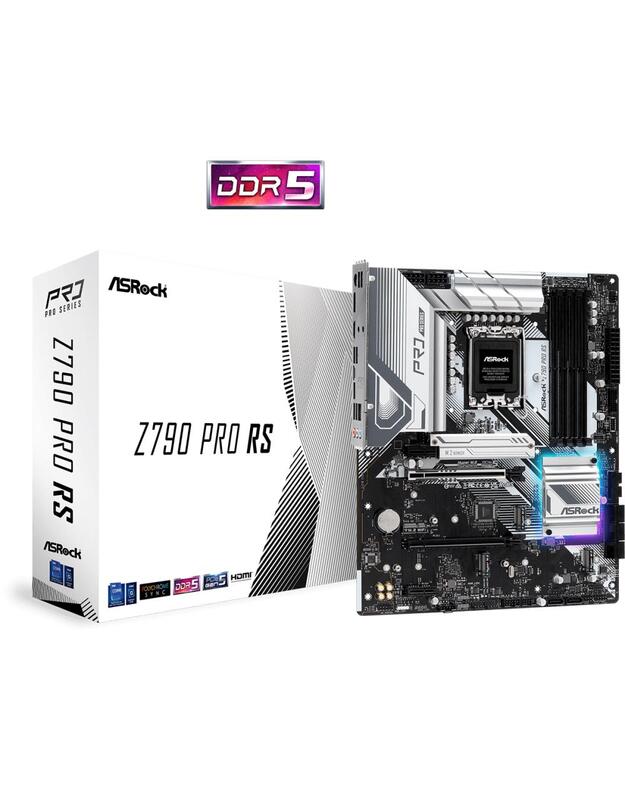

- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 14+1+1 Phase Power Design, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs, supports up to 6800+(OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
Techninė specifikacija |
Audio port |
3 |
Chipset |
Intel Z790 |
DisplayPort |
1 |
Form Factor |
ATX |
Frequency speed |
6800 |
Full Description Line |
Intel Z790|LGA1700|ATX|DDR5|6800 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header |
HDMI |
1 |
Included Accessories |
- 1 x User Manual;- 2 x SATA Data Cables;- 5 x Screws for M.2 Sockets;- 1 x Standoff for M.2 Socket |
Integrated LAN |
2.5 Gigabit |
Integrated audio |
Realtek ALC897 |
Integrated video |
Depending on CPU |
Memory slots |
4 |
Memory type |
DDR5 |
PCI-Express 3.0 1x |
2 |
PCI-Express 4.0 16x |
1 |
PS/2 |
1 |
RAID |
SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 |
RJ45 |
1 |
SATA |
Yes |
Shipping Box Depth |
38 |
Shipping Box Height |
9.5 |
Shipping Box Weight |
1.98 |
Shipping Box Width |
32 |
Shipping box quantity |
1 |
Socket |
LGA1700 |
TPM |
Header |
USB 2.0 |
Yes |
USB 3.2 |
Yes |
USB-C |
1 |
Unit Brutto Volume |
0.01155 |
Unit Gross Weight |
1.98 |
Unit Net Weight |
1.5 |
Vendor Homepage |
www.asrock.com/mb/Intel/Z790%20Pro%20RS/index.asp |
iOS |
4 |
