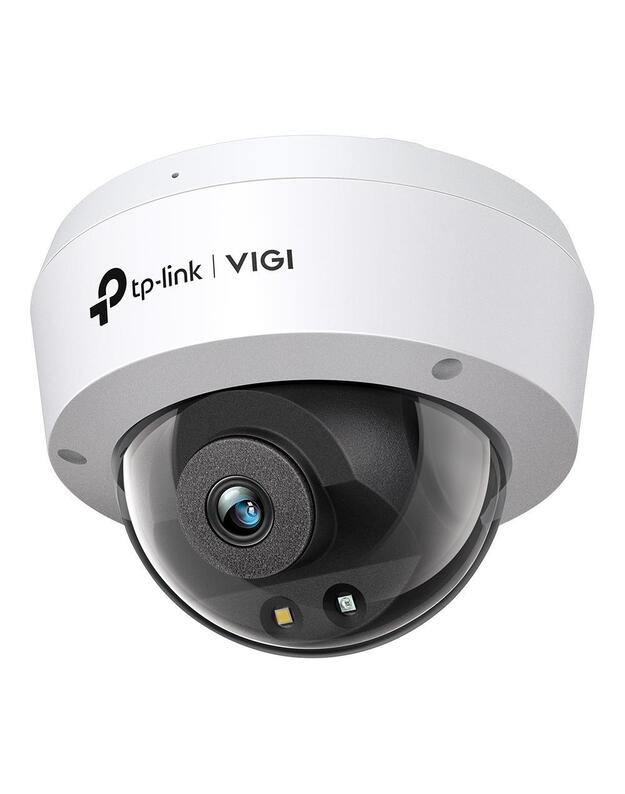

VIGI 3MP Full-Color Dome Network Camera
3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Techninė specifikacija |
Camera design |
Dome |
Colour |
White |
Dimensions |
115 × 115 × 86 mm |
Focal length |
4mm |
Full Description Line |
Type Fixed Dome/HDTV/Megapixel|Pixel Resolution 3 Mega Pixel|Focal Length 4mm|IR Illumination|Sensor size 1/2.8”|Lens Mount M12|Min. Illumination 0.005 Lux|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)|Operating temperature range -30–60 °C|Included Accessories Quick Start Guide,Waterproof Cable Attachments,Mounting Accessories|Colour White|Dimensions 115 × 115 × 86 mm |
IR Illumination |
Yes |
Included Accessories |
Quick Start Guide,Waterproof Cable Attachments,Mounting Accessories |
Lens Mount |
M12 |
Min. Illumination |
0.005 |
Operating temperature range |
-30–60 °C |
Pixel Resolution |
3 |
Power consumption |
4.7 |
Power supply requirements |
12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
RJ45 |
1 |
Sensor size |
1/2.8” |
Shipping Box Depth |
19.5 |
Shipping Box Height |
12 |
Shipping Box Weight |
0.51 |
Shipping Box Width |
15.5 |
Shipping box quantity |
1 |
Supports card capacities up to |
256GB |
Unit Brutto Volume |
0.003627 |
Unit Gross Weight |
0.51 |
Unit Net Weight |
0.4 |
Vendor Homepage |
www.tp-link.com/ae/business-networking/vigi-network-camera/vigi-c230/ |
iOS |
12V/PoE |
