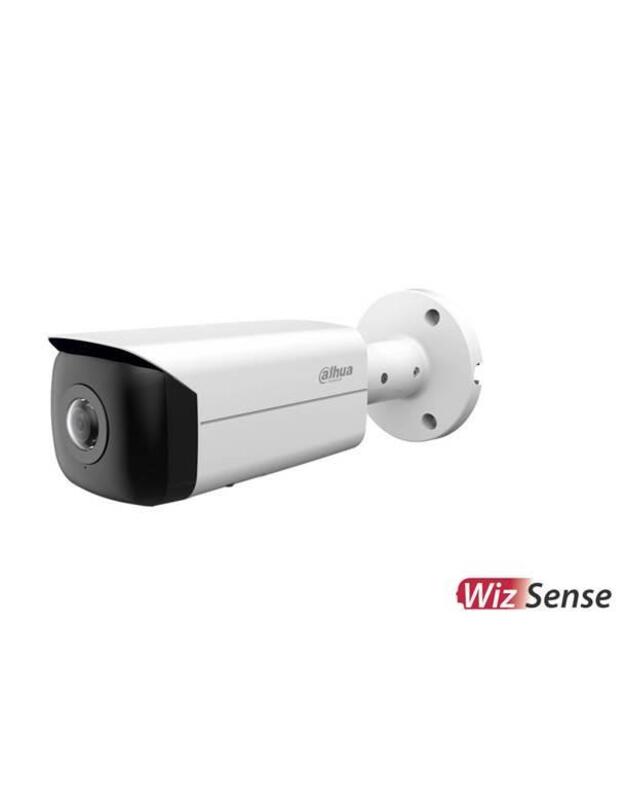

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
1/2.7” 4Megapixel progresive CMOS, 2880 × 1620 @ 20FPS max
Minimum illumination: 0.01 lux@ F2.0 (Color,30 IRE); 0.001 lux@ F2.0 (B/W,30 IRE); 0 lux (Illuminator on)
True Day/Night (ICR), BLC/HLC/True WDR 120 dB/3D DNR
2.1 mm fixed lens (180° HFOV)
Up to 20 meters visible LED Illumination
Smart H.265+; Smart H.264+; H.265; H.264; H.264B, ONVIF (Profile S/Profile G/Profile T); CGI; P2P
1/1 Audio I/O, Built-in MIC, G.711a; G.711Mu; G726; AAC encoding
1/1 Alarm I/O
Micro SD card up to 256GB supported
Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 4W max
Smart capabilities: Tripwire; intrusion (Recognition of human and vehicle). Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Free IP monitoring software available
| Techninė specifikacija |
| Alarm In |
1 |
| Alarm Out |
1 |
| Audio-In |
1 |
| Camera design |
Bullet |
| Effective pixels |
2880(H)×1620(V) |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Focal length |
2.1 mm |
| Full Description Line |
Type HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.1 mm|IR Illumination|Sensor size 1/2.7”|Microphone Built-in|Min. Illumination 0.01 Lux|Effective pixels 2880(H)×1620(V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xVIVO|1xAudio-In|1xMicroSD Card Slot|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE /12VDC |
| IR Illumination |
Yes |
| MicroSD Card Slot |
1 |
| Microphone |
Built-in |
| Min. Illumination |
0.01 |
| Pixel Resolution |
4 |
| Power consumption |
4 |
| Power supply requirements |
PoE /12VDC |
| Sensor size |
1/2.7” |
| Shipping Box Depth |
31 |
| Shipping Box Height |
14.5 |
| Shipping Box Weight |
1.19 |
| Shipping Box Width |
16 |
| Shipping box quantity |
1 |
| Supports card capacities up to |
256GB |
| Unit Brutto Volume |
0.004034 |
| Unit Gross Weight |
0.95 |
| Unit Net Weight |
0.4 |
| Vendor Homepage |
www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Wide-Angle/IPC-HFW3441T-AS-P |
| iOS |
12V/PoE |
