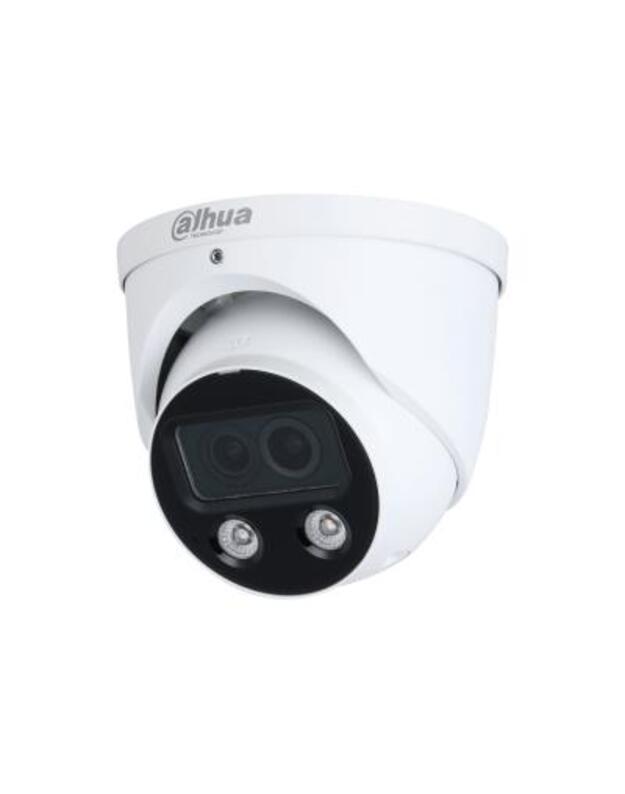

IPC-HDW5449H-ASE-D2
4 MP Dual Lens Fixed-focal Eyeball WizMind Full-color Network Camera
> Dual AI sensors with multi-spectral imaging technology that produces colorful images in low illumination conditions.
> Outputs max. 4 MP (2688 × 1520)@25/30 fps.
> Built-in warm light/IR LED, with a maximum illumination distance of 50 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, and parking detection.
> Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, and face exposure.
> People counting: Queue management, people counting in area, entered/exited people counting, and generating and exporting report (day/month/year).
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in Mic and speaker, support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
| Techninė specifikacija |
| Camera design |
Eyeball |
| Colour |
White |
| Dimensions |
122 mm × 110.9 mm |
| Environment |
Outdoor |
| Focal length |
2.8 mm; 3.6 mm; 6 mm |
| Full Description Line |
Type Fixed|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm; 3.6 mm; 6 mm|IR Illumination|Sensor size 1/1.8" + 1/1.8" CMOS|Microphone Built-in|Lens Mount M16|Min. Illumination 0.0002 Lux|1xRJ45|Power options PoE|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 122 mm × 110.9 mm |
| IR Illumination |
Yes |
| Lens Mount |
M16 |
| Microphone |
Built-in |
| Min. Illumination |
0.0002 |
| Operating temperature range |
–40 °C to +60 °C |
| Pixel Resolution |
4 |
| Power consumption |
3.9 |
| RJ45 |
1 |
| Sensor size |
1/1.8" + 1/1.8" CMOS |
| Shipping Box Depth |
16 |
| Shipping Box Height |
15.5 |
| Shipping Box Weight |
0.925 |
| Shipping Box Width |
14 |
| Shipping box quantity |
1 |
| Unit Brutto Volume |
0.003472 |
| Unit Gross Weight |
0.925 |
| Unit Net Weight |
0.75 |
| Vendor Homepage |
www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-Series/5-Series/Full-color/IPC-HDW5449H-ASE-D2 |
| iOS |
PoE |
