- 1/2.9” 4Megapixel progressive CMOS, 2688 × 1520 @ 20 fps
- Minimum illumination: 0.008 lux @ F1.6 (Color, 30 IRE), 0.0008 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)
- 2.8 mm fixed lens (95°)
- Up to 30 meters Illumination: white warm light/IR LED
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P
- No alarm I/O, no audio I/O, Built-in MIC
- Micro SD card up to 256GB supported
- Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 7.3W max
- Smart capabilities: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Free IP monitoring software available
| Techninė specifikacija |

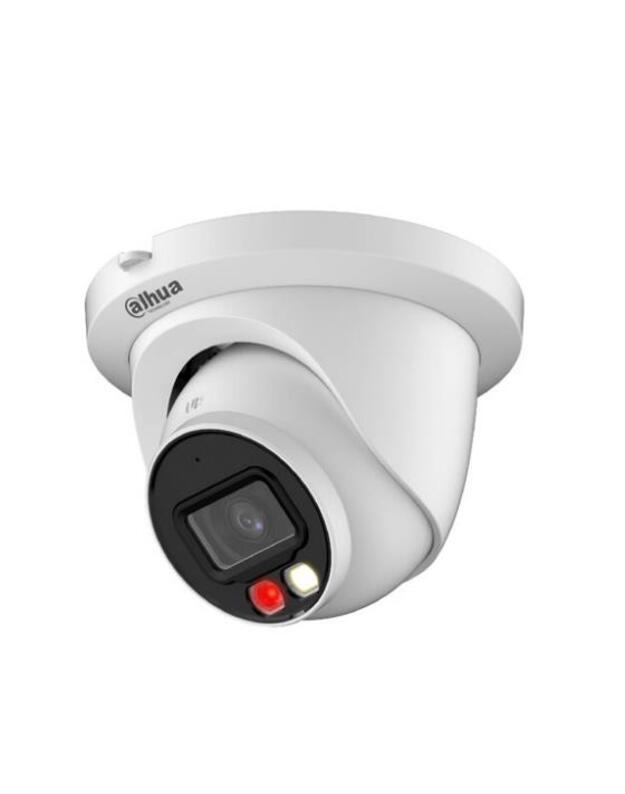

| Camera design |
Eyeball |
| Dimensions |
99.1 mm × Φ121.9 mm |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Environment |
Outdoor |
| Focal length |
2.8 mm |
| Full Description Line |
Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.9" CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0008 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power|Environment Outdoor|Operating temperature range -40°C~+60°C|Dimensions 99.1 mm × Φ121.9 mm |
| IR Illumination |
Yes |
| Lens Mount |
M12 |
| MicroSD Card Slot |
1 |
| Microphone |
Built-in |
| Min. Illumination |
0.0008 |
| Operating temperature range |
-40°C~+60°C |
| Pixel Resolution |
4 |
| Power consumption |
7.3 |
| Power supply requirements |
PoE / 12VDC power |
| RJ45 |
1 |
| Sensor size |
1/2.9" CMOS |
| Shipping Box Depth |
14 |
| Shipping Box Height |
14 |
| Shipping Box Weight |
0.66 |
| Shipping Box Width |
11.5 |
| Shipping box quantity |
1 |
| Supports card capacities up to |
256GB |
| Unit Brutto Volume |
0.002254 |
| Unit Gross Weight |
0.66 |
| Unit Net Weight |
0.46 |
| Vendor Homepage |
www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDW2449TM-S-IL |
| iOS |
12V/PoE |
