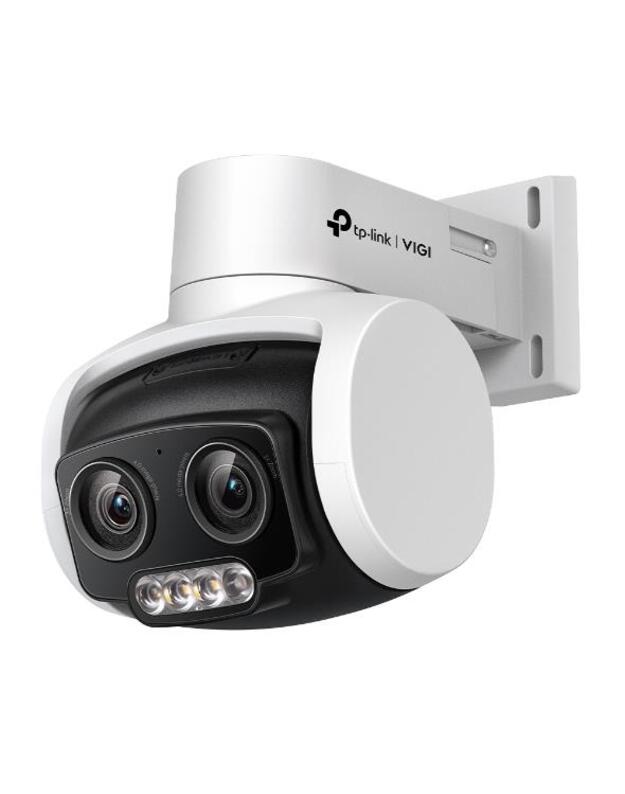

VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera - 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
- 24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.
- 3× Zoom: Allows for closer viewing of objects in expansive areas.
- Instant Zoom: Zooming is instant without suffering from delays and image dragging.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.
- Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).
Techninė specifikacija |
Camera design |
PT/PTZ |
Colour |
White |
Dimensions |
107× 136× 139 mm |
Electronic Shutter Speed |
1/3 to 1/10000 s |
Environment |
Outdoor |
Focal length |
4-12 mm |
Full Description Line |
Type Outdoor/PTZ|Pixel Resolution 4 Mega Pixel|Focal Length 4-12 mm|IR Illumination|Sensor size 1/3” Progressive Scan CMOS|Microphone Built-in|Min. Illumination 0.005 Lux|Electronic Shutter Speed 1/3 to 1/10000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W|Environment Outdoor|Operating temperature range -30–60 °C|Included Accessories Quick Start Guide;Waterproof Cable Attachments;Mounting Accessories|Colour White|Dimensions 107× 136× 139 mm |
IR Illumination |
Yes |
Included Accessories |
Quick Start Guide;Waterproof Cable Attachments;Mounting Accessories |
Microphone |
Built-in |
Min. Illumination |
0.005 |
Operating temperature range |
-30–60 °C |
Pixel Resolution |
4 |
Power supply requirements |
12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W |
RJ45 |
1 |
Sensor size |
1/3” Progressive Scan CMOS |
Shipping Box Depth |
19 |
Shipping Box Height |
16 |
Shipping Box Weight |
0.7 |
Shipping Box Width |
15 |
Shipping box quantity |
1 |
Supports card capacities up to |
256GB |
Unit Brutto Volume |
0.00456 |
Unit Gross Weight |
0.7 |
Unit Net Weight |
0.43 |
Vendor Homepage |
www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c540v/ |
iOS |
12V/PoE |
