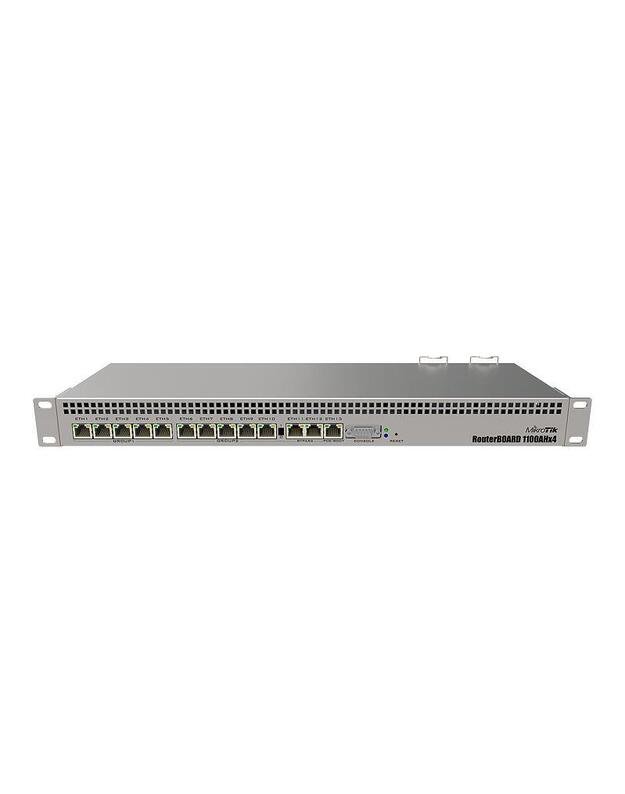

RB1100AHx4
Powerful 1U rackmount router with 13x Gigabit Ethernet ports
Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).
Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support)
| Techninė specifikacija |
| Dimensions |
443 x 148 x 44 mm |
| Flash memory capacity |
128MB |
| Full Description Line |
RB1100AHx4|Network Device Type Router|13x10/100/1000M|Memory (RAM) 1GB|Flash memory capacity 128MB|Power supply requirements 100-240V, two AC inputs / 802.3at/af|Included Accessories K10 R2 screw kitRack ears2x IEC cord|Power consumption 20 Watts|Operating temperature range -40°C to 70°C|Dimensions 443 x 148 x 44 mm |
| Included Accessories |
K10 R2 screw kitRack ears2x IEC cord |
| Operating temperature range |
-40°C to 70°C |
| Power consumption |
20 |
| Power supply requirements |
100-240V, two AC inputs / 802.3at/af |
| Product model code |
RB1100AHx4 |
| Shipping Box Depth |
48 |
| Shipping Box Height |
23 |
| Shipping Box Weight |
1.8 |
| Shipping Box Width |
6 |
| Shipping box quantity |
1 |
| Unit Brutto Volume |
0.006624 |
| Unit Gross Weight |
1.8 |
| Unit Net Weight |
1.3 |
| Vendor Homepage |
mikrotik.com/product/rb1100ahx4 |
| iOS |
1GB |
