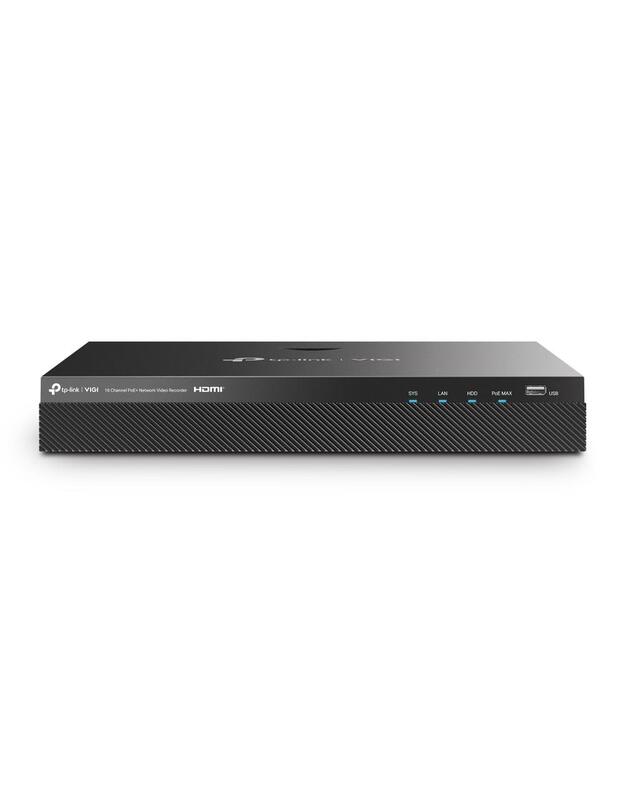

VIGI NVR2016H-16MP
VIGI 16 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
- 140 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 140 W.‡
- 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
- 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
- Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
- Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
Techninė specifikacija |
15pin D-sub |
1 |
Audio-In |
1 |
Audio-Out |
1 |
Colour |
Black |
Dimensions |
330 × 285 × 45 mm |
Full Description Line |
Channels 16|SATA|Integrated LAN Gigabit|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xeSATA|1xRJ45|Power consumption 6.2 Watts|Dim. 330 × 285 × 45 mm|Temp. range -10–55 °C|Colour Black |
HDMI |
1 |
Integrated LAN |
Gigabit |
Number of channels |
16 |
Operating temperature range |
-10–55 °C |
PoE ports |
16 |
Power consumption |
6.2 |
RJ45 |
1 |
SATA |
Yes |
Shipping Box Depth |
51 |
Shipping Box Height |
12 |
Shipping Box Weight |
4.2 |
Shipping Box Width |
41 |
Shipping box quantity |
1 |
USB 2.0 |
2 |
Unit Brutto Volume |
0.02509 |
Unit Gross Weight |
4.1 |
Unit Net Weight |
2.1 |
Vendor Homepage |
www.tp-link.com/en/business-networking/vigi-network-video-recorder/vigi-nvr2016h-16mp/v1%20(no%20hdd)/ |
eSATA |
1 |
