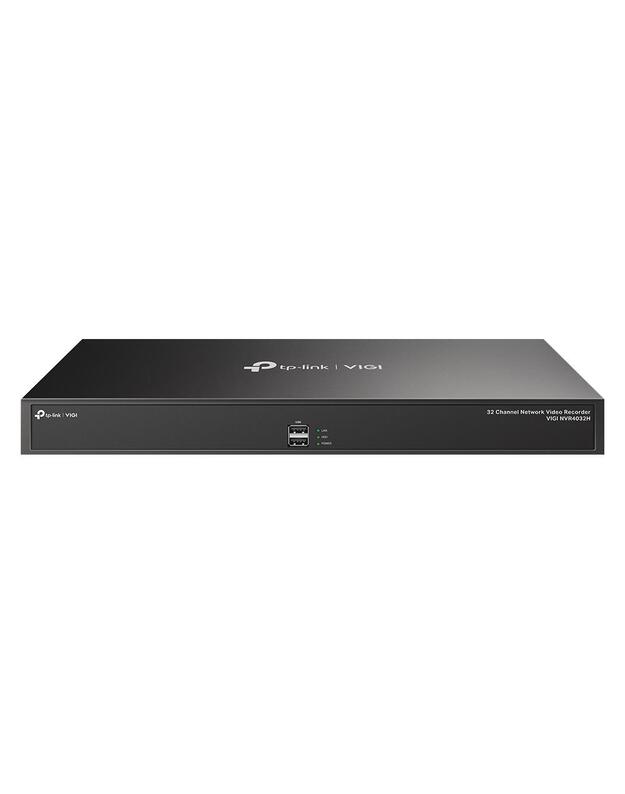

VIGI 32 Channel Network Video Recorder
Face Recognition: Enhances access management and maximizes security.
Smart Search by Motion and Object: Quickly find target footage for improved playback efficiency.
H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.
Mass Storage: Supports 4× SATA, up to 10 TB each
16-ch@2MP/ 8-ch@4MP Decoding Capacity†: Allows you to enjoy more channels, live view, and playback at the same time.
1 HDMI and 1 VGA Interface: Supports independent video output.
16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.r
Techninė specifikacija |
15pin D-sub |
1 |
Alarm In |
16 |
Alarm Out |
4 |
Audio-In |
1 |
Audio-Out |
1 |
Desktop/pedestal |
Yes |
Dimensions |
440 × 330 × 44 mm |
Full Description Line |
Channels 32|Drives/bays 4|Desktop/pedestal|Integrated LAN Gigabit|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRS232|2xRJ45|16xAlarm In|4xAlarm Out|Power supply requirements 100-240 VAC, 50 to 60HZ, 1.5A|Power consumption 48 Watts|Dim. 440 × 330 × 44 mm|Temp. range -10–55 °C |
HDMI |
1 |
Integrated LAN |
Gigabit |
Number of channels |
32 |
Operating temperature range |
-10–55 °C |
Power consumption |
48 |
Power supply requirements |
100-240 VAC, 50 to 60HZ, 1.5A |
RJ45 |
2 |
RS232 |
1 |
Shipping Box Depth |
53 |
Shipping Box Height |
10.2 |
Shipping Box Weight |
5.25 |
Shipping Box Width |
44 |
Shipping box quantity |
1 |
Unit Brutto Volume |
0.02379 |
Unit Gross Weight |
5.25 |
Unit Net Weight |
4 |
Vendor Homepage |
ww.tp-link.com/us/business-networking/vigi-network-video-recorder/vigi-nvr4032h/#specifications |
iOS |
4 |
