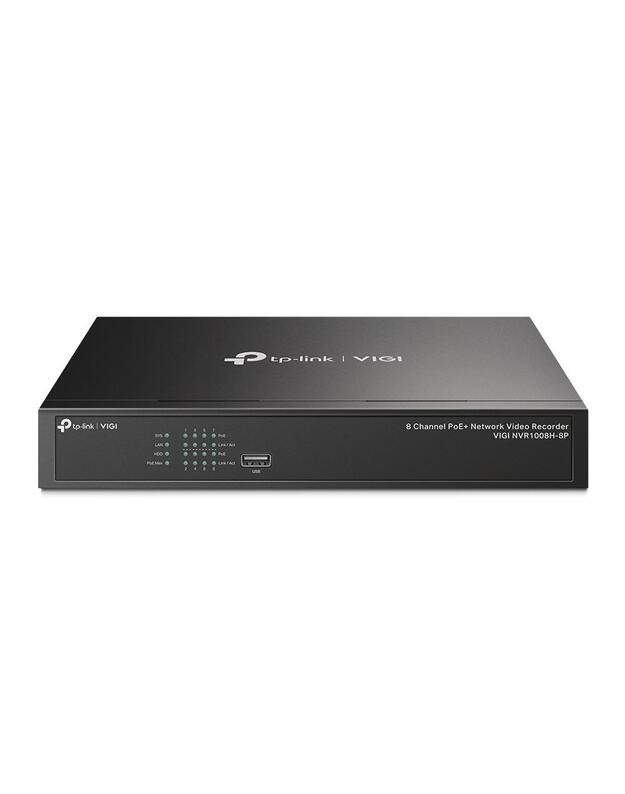

VIGI 8 Channel PoE+ Network Video Recorder
4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle‡.
Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
8-Channel Simultaneous Playback*: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Flexible Installation: Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
| Techninė specifikacija |
| 15pin D-sub |
1 |
| Audio-In |
1 |
| Audio-Out |
1 |
| Colour |
Black |
| Dimensions |
294 × 180 × 44 mm |
| Full Description Line |
Channels 8|Drives/bays 1|SATA|Integrated LAN Gigabit|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 53.5V DC/1.31 A|Power consumption 12.94 Watts|Dim. 294 × 180 × 44 mm|Temp. range -10–55 °C|Colour Black |
| HDMI |
1 |
| Integrated LAN |
Gigabit |
| Number of channels |
8 |
| Operating temperature range |
-10–55 °C |
| PoE ports |
8 |
| Power consumption |
12.94 |
| Power supply requirements |
53.5V DC/1.31 A |
| RJ45 |
1 |
| SATA |
Yes |
| Shipping Box Depth |
40 |
| Shipping Box Height |
8 |
| Shipping Box Weight |
2.14 |
| Shipping Box Width |
25 |
| Shipping box quantity |
1 |
| USB 2.0 |
2 |
| Unit Brutto Volume |
0.008 |
| Unit Gross Weight |
2.14 |
| Unit Net Weight |
1.8 |
| Vendor Homepage |
www.tp-link.com/my/business-networking/vigi-network-video-recorder/vigi-nvr1008h-8p/ |
| iOS |
1 |
