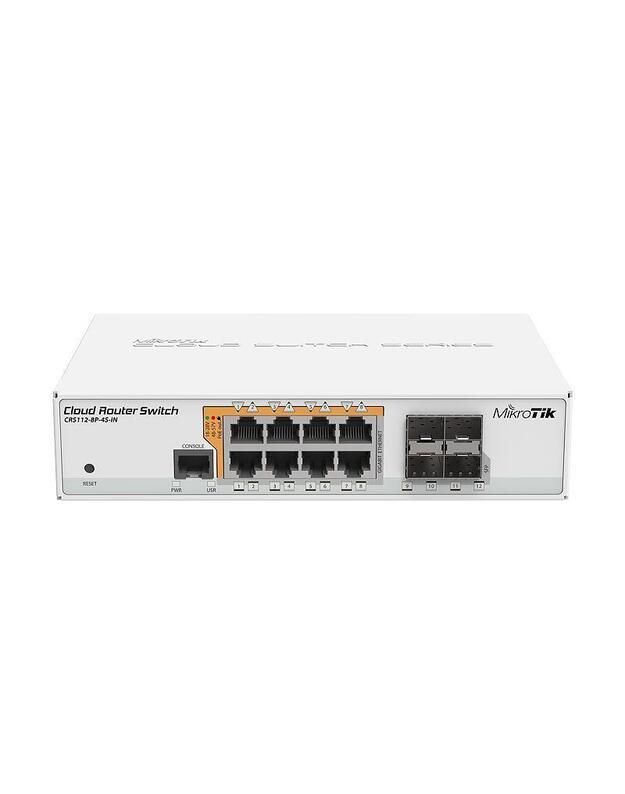

8x Gigabit Ethernet Smart Switch with PoE-out, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5
CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V.
Techninė specifikacija |
10Base-T / 100Base-TX / 1000Base-T |
8 |
Console |
1 |
Full Description Line |
8x10Base-T / 100Base-TX / 1000Base-T|4xSFP|1xConsole|Unit Net Weight 0.5 kg |
Primary port count |
8 |
SFP |
4 |
Shipping Box Depth |
30.8 |
Shipping Box Height |
5.6 |
Shipping Box Weight |
1.6 |
Shipping Box Width |
23.8 |
Shipping box quantity |
1 |
Unit Brutto Volume |
0.004105 |
Unit Gross Weight |
1.6 |
Unit Net Weight |
0.5 |
Vendor Homepage |
mikrotik.com/product/crs112_8p_4s_in#fndtn-specifications |
