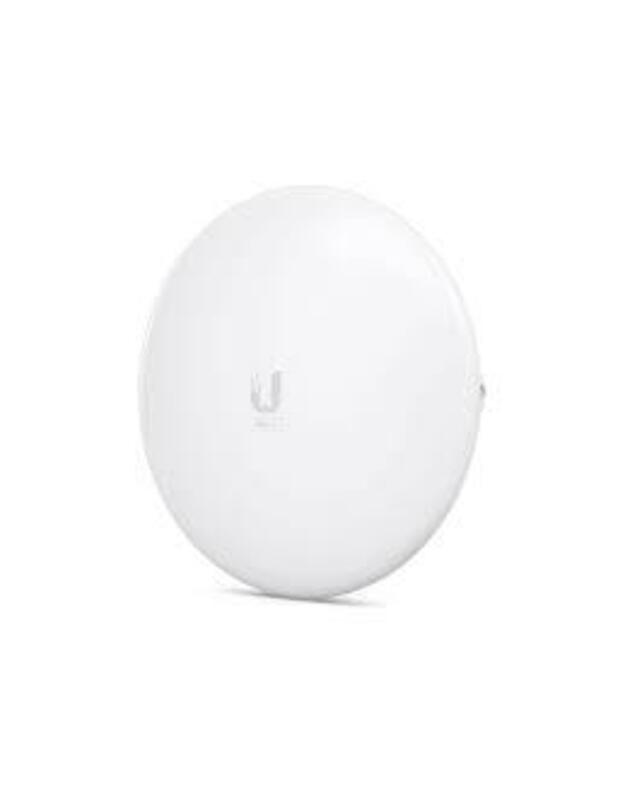

60 GHz PtMP station powered by Wave Technology.
Max. link range:
— Wave AP: 5 km
— Wave AP Micro: 4 km
Max. throughput: 2 Gbps (1 Gbps duplex)
5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
(1) GbE RJ45 port
Integrated GPS & Bluetooth
| Techninė specifikacija |
| Antenna Gain |
41 |
| Colour |
White |
| Dimensions |
Ø256.5 x 113.5 mm |
| Full Description Line |
WAVE-NANO|Antenna Gain 41 dB|Power supply requirements 48V DC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch|Colour White|Dimensions Ø256.5 x 113.5 mm |
| Model name |
WAVE-NANO |
| Power supply requirements |
48V DC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch |
| RJ45 |
1 |
| Shipping Box Depth |
42 |
| Shipping Box Height |
31 |
| Shipping Box Weight |
5.904 |
| Shipping Box Width |
32 |
| Shipping box quantity |
2 |
| Unit Brutto Volume |
0.02083 |
| Unit Gross Weight |
2.95 |
| Unit Net Weight |
0.932 |
| Vendor Homepage |
eu.store.ui.com/eu/en/collections/uisp-60ghz-client-compact/products/wave-nano |
